import os
os.environ.setdefault('LOKY_MAX_CPU_COUNT', '4')
from pathlib import Path
import json
import numpy as np
import pandas as pd
import matplotlib.pyplot as plt
from sklearn.dummy import DummyClassifier
from sklearn.ensemble import RandomForestClassifier
from sklearn.inspection import permutation_importance
from sklearn.metrics import roc_auc_score
from sklearn.model_selection import train_test_split
RANDOM_STATE = 42
rng = np.random.default_rng(RANDOM_STATE)
plt.style.use('seaborn-v0_8-whitegrid')
from pathlib import Path
import json
import urllib.request
import urllib.parse
DATA_BASE_URL = 'https://raw.githubusercontent.com/muhammad-zainal-muttaqin/NulisBuku/main/website/notebooks/data/section1'
def section_data_dir(name):
"""Folder data Bagian 1: pakai salinan lokal bila ada; jika tidak (mis. di
Google Colab), unduh berkas dari repo GitHub sesuai manifest."""
for base in (Path('data/section1'), Path('../data/section1')):
if (base / name).exists():
return base / name
cache = Path('_nb_data') / name
if not (cache / 'manifest.json').exists():
cache.mkdir(parents=True, exist_ok=True)
base_url = DATA_BASE_URL + '/' + name
manifest = json.loads(urllib.request.urlopen(base_url + '/manifest.json').read().decode('utf-8'))
for rel in manifest:
dest = cache / rel
dest.parent.mkdir(parents=True, exist_ok=True)
if not dest.exists():
url = base_url + '/' + '/'.join(urllib.parse.quote(seg) for seg in rel.split('/'))
urllib.request.urlretrieve(url, dest)
(cache / 'manifest.json').write_text(json.dumps(manifest), encoding='utf-8')
return cacheNotebook Bab 9 - Evaluasi Kualitas Fitur
Notebook Bab 9 ini punya dua bagian. Bagian Demo tinggal Anda jalankan lalu amati keluarannya; bagian Mini Project berisi soal dan data yang Anda kerjakan sendiri.
Kualitas fitur diukur dari kontribusinya ke performa. Kita memakai WDBC untuk membandingkan baseline dummy, ablation kelompok, permutation importance, dan model-based importance.
Persiapan
Section 1 - Demo: Evaluasi Kelompok Fitur WDBC
Data: tiga keluarga fitur nyata
WDBC memiliki 30 fitur numerik yang alami dibagi menjadi tiga keluarga: mean, error, dan worst. Karena keluarga ini berkorelasi, kita bisa melihat mengapa satu fitur atau satu kelompok kadang tampak tidak penting ketika penggantinya masih tersedia.
DATA_DIR = section_data_dir('ch09_wdbc')
wdbc = pd.read_parquet(DATA_DIR / 'wdbc.parquet')
stats = json.loads((DATA_DIR / 'verified_stats.json').read_text(encoding='utf-8'))
X = wdbc.drop(columns=['diagnosis', 'malignant'])
y = wdbc['malignant']
groups = stats['groups']
print(f"Rows: {stats['rows']:,} | Features: {stats['feature_count']} | Missing cells: {stats['missing_cells']}")
print('Target counts:', stats['target_counts'])
print('Group sizes:', stats['group_sizes'])
print('Top correlated feature pairs:')
print(pd.read_csv(DATA_DIR / 'top_correlated_feature_pairs.csv').head(5).to_string(index=False, float_format=lambda x: f'{x:.4f}'))Rows: 569 | Features: 30 | Missing cells: 0
Target counts: {'benign': 357, 'malignant': 212}
Group sizes: {'mean': 10, 'error': 10, 'worst': 10}
Top correlated feature pairs:
feature_a feature_b abs_corr
mean radius mean perimeter 0.9979
worst radius worst perimeter 0.9937
mean radius mean area 0.9874
mean perimeter mean area 0.9865

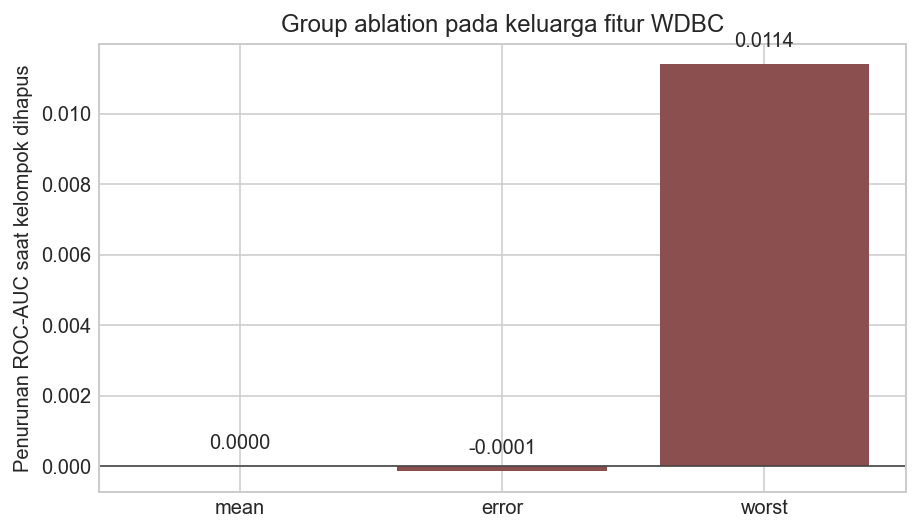

worst radius worst area 0.9840Baseline dummy dan ablation kelompok
Baseline dummy memberi lantai metrik. Setelah itu, kita latih model yang sama berulang kali: semua fitur, lalu tanpa satu keluarga fitur. Penurunan ROC-AUC adalah kontribusi prediktif kelompok di bawah protokol ini.
X_train, X_test, y_train, y_test = train_test_split(
X, y, test_size=0.3, random_state=RANDOM_STATE, stratify=y
)
rf_params = {'n_estimators': 400, 'random_state': RANDOM_STATE, 'min_samples_leaf': 2}
model = RandomForestClassifier(**rf_params).fit(X_train, y_train)
all_auc = roc_auc_score(y_test, model.predict_proba(X_test)[:, 1])
dummy = DummyClassifier(strategy='most_frequent').fit(X_train, y_train)
dummy_auc = roc_auc_score(y_test, dummy.predict_proba(X_test)[:, 1])
ablation_rows = []
for group, cols in groups.items():
keep = [c for c in X.columns if c not in cols]
m = RandomForestClassifier(**rf_params).fit(X_train[keep], y_train)
auc = roc_auc_score(y_test, m.predict_proba(X_test[keep])[:, 1])
ablation_rows.append({'removed_group': group, 'roc_auc': auc, 'auc_drop': all_auc - auc})
ablation = pd.DataFrame(ablation_rows)
print(f'Dummy ROC-AUC: {dummy_auc:.4f}')
print(f'All-feature ROC-AUC: {all_auc:.4f}')
print(ablation.to_string(index=False, float_format=lambda x: f'{x:.4f}'))
fig, ax = plt.subplots(figsize=(6.5, 3.8))
ax.bar(ablation['removed_group'], ablation['auc_drop'], color='#8c4f4f')
ax.axhline(0, color='#444444', linewidth=0.8)
ax.set_ylabel('Penurunan ROC-AUC saat kelompok dihapus')
ax.set_title('Group ablation pada keluarga fitur WDBC')
for i, value in enumerate(ablation['auc_drop']):
ax.text(i, value + 0.0005, f'{value:.4f}', ha='center')
plt.tight_layout()
plt.show()Dummy ROC-AUC: 0.5000
All-feature ROC-AUC: 0.9962
removed_group roc_auc auc_drop
mean 0.9962 0.0000
error 0.9963 -0.0001
worst 0.9848 0.0114

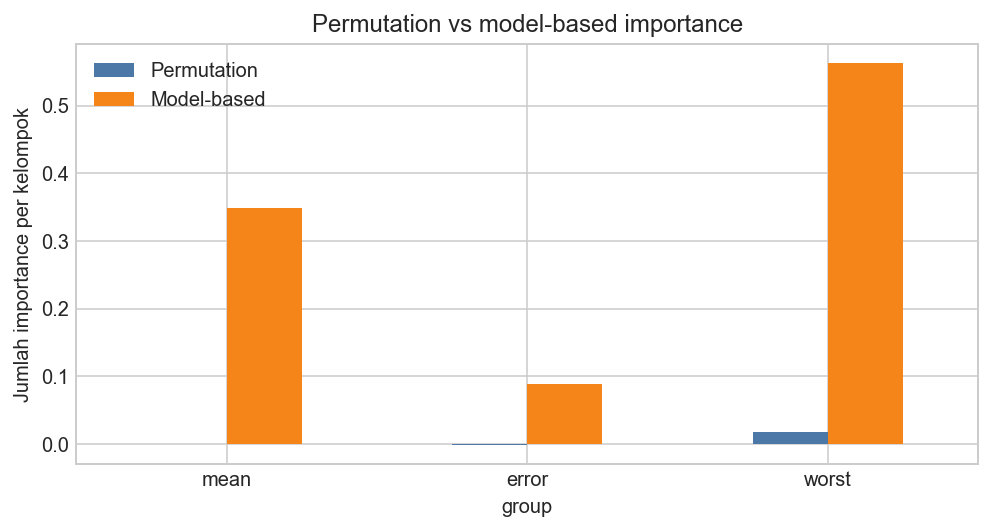

Permutation importance vs model-based importance
Permutation importance mengacak satu kolom pada data validasi dan mengukur turunnya skor. Model-based importance lebih cepat, tetapi dapat membagi kredit secara berbeda ketika fitur saling berkorelasi.
perm = permutation_importance(
model, X_test, y_test, n_repeats=20, random_state=RANDOM_STATE, scoring='roc_auc'
)
perm_df = pd.DataFrame({
'feature': X.columns,
'importance_mean': perm.importances_mean,
'importance_std': perm.importances_std,
})
def feature_group(name):
if name.startswith('mean '):
return 'mean'
if name.endswith(' error'):
return 'error'
return 'worst'
perm_df['group'] = perm_df['feature'].map(feature_group)
mdi_df = pd.DataFrame({'feature': X.columns, 'importance': model.feature_importances_})
mdi_df['group'] = mdi_df['feature'].map(feature_group)
comparison = pd.DataFrame({
'permutation_sum': perm_df.groupby('group')['importance_mean'].sum(),
'model_importance_sum': mdi_df.groupby('group')['importance'].sum(),
}).loc[['mean', 'error', 'worst']]
print(comparison.to_string(float_format=lambda x: f'{x:.4f}'))
print()
print('Top permutation features:')
print(perm_df.sort_values('importance_mean', ascending=False).head(8).to_string(index=False, float_format=lambda x: f'{x:.4f}'))
fig, ax = plt.subplots(figsize=(7, 3.8))
comparison.plot(kind='bar', ax=ax, color=['#4c78a8', '#f58518'])
ax.set_ylabel('Jumlah importance per kelompok')
ax.set_title('Permutation vs model-based importance')
ax.legend(['Permutation', 'Model-based'])
plt.xticks(rotation=0)
plt.tight_layout()
plt.show() permutation_sum model_importance_sum
group
mean 0.0001 0.3486
error -0.0008 0.0889
worst 0.0171 0.5625
Top permutation features:
feature importance_mean importance_std group
worst area 0.0061 0.0034 worst
worst concave points 0.0045 0.0021 worst
worst perimeter 0.0038 0.0028 worst
worst texture 0.0019 0.0005 worst
worst radius 0.0013 0.0017 worst
mean concave points 0.0013 0.0023 mean
mean texture 0.0008 0.0004 mean
worst concavity 0.0003 0.0004 worst
🔎 Amati. WDBC sangat mudah untuk model ini, sehingga ROC-AUC semua fitur sudah hampir sempurna. Justru itu memperlihatkan pelajaran penting: ketika fitur berkorelasi, menghapus
meanatauerrorhampir tidak menurunkan skor karena keluarga lain masih menjadi pengganti. Kelompokworstpaling tampak pada ablation dan permutation importance. Model-based importance tetap memberi kredit kemean, sehingga importance perlu dibaca bersama protokol evaluasinya.
Section 2 - Mini Project
Soal
Anda diberi data dengan dua kelompok fitur (sinyal dan noise). Targetnya klasifikasi biner.
Tugas: 1. Hitung akurasi baseline dengan semua fitur. 2. Lakukan ablation: hapus sinyal, hapus noise, lalu bandingkan penurunan skor. 3. Hitung permutation importance dan bandingkan hasilnya dengan ablation.
# DATA AWAL (jangan diubah) - dua kelompok: sinyal (kuat) dan noise (kosong).
n = 2500
sinyal = rng.normal(size=(n, 6))
noise = rng.normal(size=(n, 6))
logit = sinyal @ np.array([1.4, -1.1, 0.9, -0.7, 0.5, -0.4])
yq = (rng.random(n) < 1 / (1 + np.exp(-logit))).astype(int)
Xq = np.hstack([sinyal, noise])
print('Data:', Xq.shape)Data: (2500, 12)# Kerjakan di sini.
# Petunjuk: latih model pada subset kolom untuk ablation; sklearn.inspection.permutation_importance untuk pembanding.
